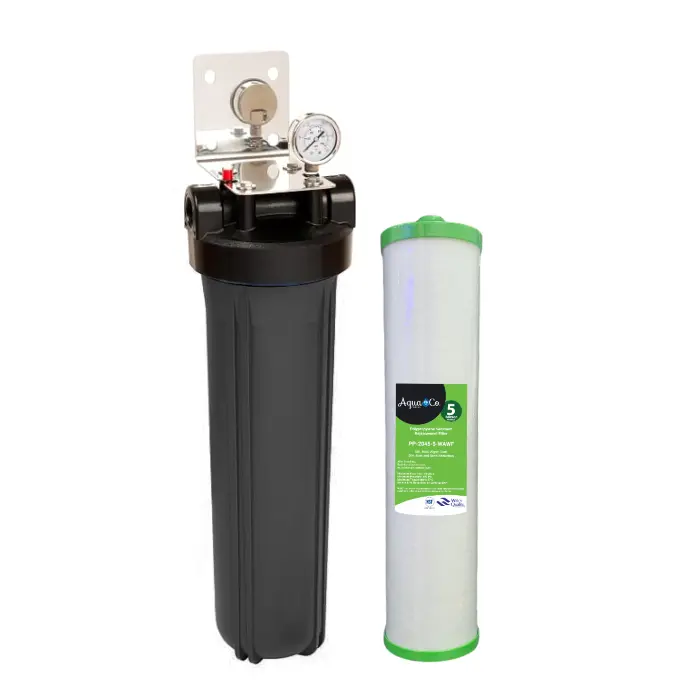

20 x 4.5″ Single Stage Whole House System

20 x 4.5″ Single Stage Whole House System

• Brand: AquaCo
• Size: 20″ x 4.5″
• Micron rating: 5 Microns

Features

• 20” x 4.5” high virgin polypropylene filter housing with ABS cap with reinforced stainless steel ports for maximum durability.
• Stainless Steel Oil Filled Pressure Gauge
• Stainless Steel Bracket
• 1″ Ports BSP
• Pressure Relief Buttons

Specifications

• Max Pressure: 90 psi
  • Where line pressure exceeds 520 kPa, a pressure limiting valve must be installed. Protect the housing from water hammer.
• Temperature: 0.5°C – 60°C
  • Use on cold water line only (with water up to 52°C). For installation over 52°C please enquire as to a suitable housing. Protect the housing from freezing.
• Max Flow 160 L/Min
• Operating Flow: 60 L/Min

Guidelines & Warnings

• Avoid installing in direct sunlight.
• Use PTFE thread seal tape on all connections. Use of pipe/thread sealants will void warranty.
• Do not overtighten. Too much tape or over tightening may cause head to split.
• For point of entry installations an approved dual check backflow prevention device must be fitted in accordance with national plumbing product codes.
• Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection.
• This product must be installed in accordance with local plumbing regulations by a licensed plumber.

Filter Maintenance

It is recommended to replace the filter every 12 to 18 months. However, the frequency of replacement may vary depending on water quality and usage. Failure to replace the filter as needed may cause stress on the filter housing, leading to potential issues such as reduced filtration efficiency, leakage, and damage to the filter system.

Filter housings (casings) are recommended to be changed every 5-10 years. However, replacement frequency can vary if filter housings are directly/indirectly exposed to the sun.
