AquaCo Reverse Osmosis High Alkaline Water Filtration System (RO)

High Alkaline Reverse Osmosis Water Filter

LED Indicator Chrome Faucet High Loop Certifications

AquaCo Reverse Osmosis High Alkaline Water Filtration System (RO)

$899.00 – $1,046.00 Inc. GST

SKU: SYS-ROTM5-Complete Categories: Reverse Osmosis 4, 5 & 6 Stage Systems, Reverse Osmosis Systems, Under Sink, Undersink Systems Tags: Alkaline Water, Reverse Osmosis

Description

This is the AquaCo Reverse Osmosis System for Alkaline, Mineralised and Ultrapure Drinking Water.

Benefits:

LED Indicator Light – The faucet will light red when filters need changing.
For a 100% fluoride and hardness removal as well as sweet tasting water (Bottle-Like Water).
Protects your coffee machines, ice makers, kettles, iron steamers, appliances and more.
The final stage in the reverse osmosis will effectively raise pH levels and produce antioxidant and oxygenating qualities.
The last stage also adds Calcium, Magnesium and Potassium.
Removes harmful PFAS and reduces TDS levels in water.
This system can be oriented horizontally or vertically under your existing kitchen bench.

⚠️ This system is for use on cold water line only. Hot water may damage the system.

Pair it with:

Technical Data

To download the brochure, simply click here or directly on the image below.

Contaminant Reduction

Rejects all salts and inorganic molecules, as well as organic molecules. It is therefore the most effective process for removing contaminants such as: Endotoxins/pyrogens, Insecticides/pesticides, Herbicides, Antibiotics, Nitrates, Sugars, Soluble salts, and Metal ions. See RO Membranes Contaminant Removal List

Filtration Stages

Stage 1: Sediment Pre-Filter – Replace every year

Removes dust, dirt, sediment, rust and sand to protect the carbon pre-filter.

Stage 2: Carbon Pre-Filter – Replace every year

Removes Herbicides, Pesticides, Chlorine and Chemicals to protect the membrane.

Stage 3: Ultrafine TFC RO Membrane – Replace 3 years

The RO membrane acts as a barrier to all salts and inorganic molecules, as well as organic molecules.

It is, therefore, the most effective process for removing contaminants such as fluoride, heavy metals, such as lead, mercury, copper, arsenic, aluminium, cadmium, and other pollutants of concern like pesticides, silica, hardness and salts.

Stage 4: Carbon Polishing Post-Filter – Replace every year

Generates and supplies outstanding tasting water.

Stage 5: Alkalising Filter – Replace 2 years

Successfully raises pH levels (Resulting pH >9) along with producing antioxidant and oxygenating qualities.

Maintenance

AquaCo Reverse Osmosis Replacement Filters

Stage 1: Sediment Pre-Filter – Replace every year
Stage 2: Carbon Pre-Filter – Replace every year
Stage 3: Ultrafine TFC RO Membrane – Replace 3 years
Stage 4: Carbon Polishing Post-Filter – Replace every year
Stage 5: Alkalising Filter – Replace 2 years

Installation Images

AquaCo Reverse Osmosis Installation Images

Dedicated Tap – Installation Images

3 Way Mixer – Installation Images

Installation Guide

AquaCo Reverse Osmosis Installation Guide

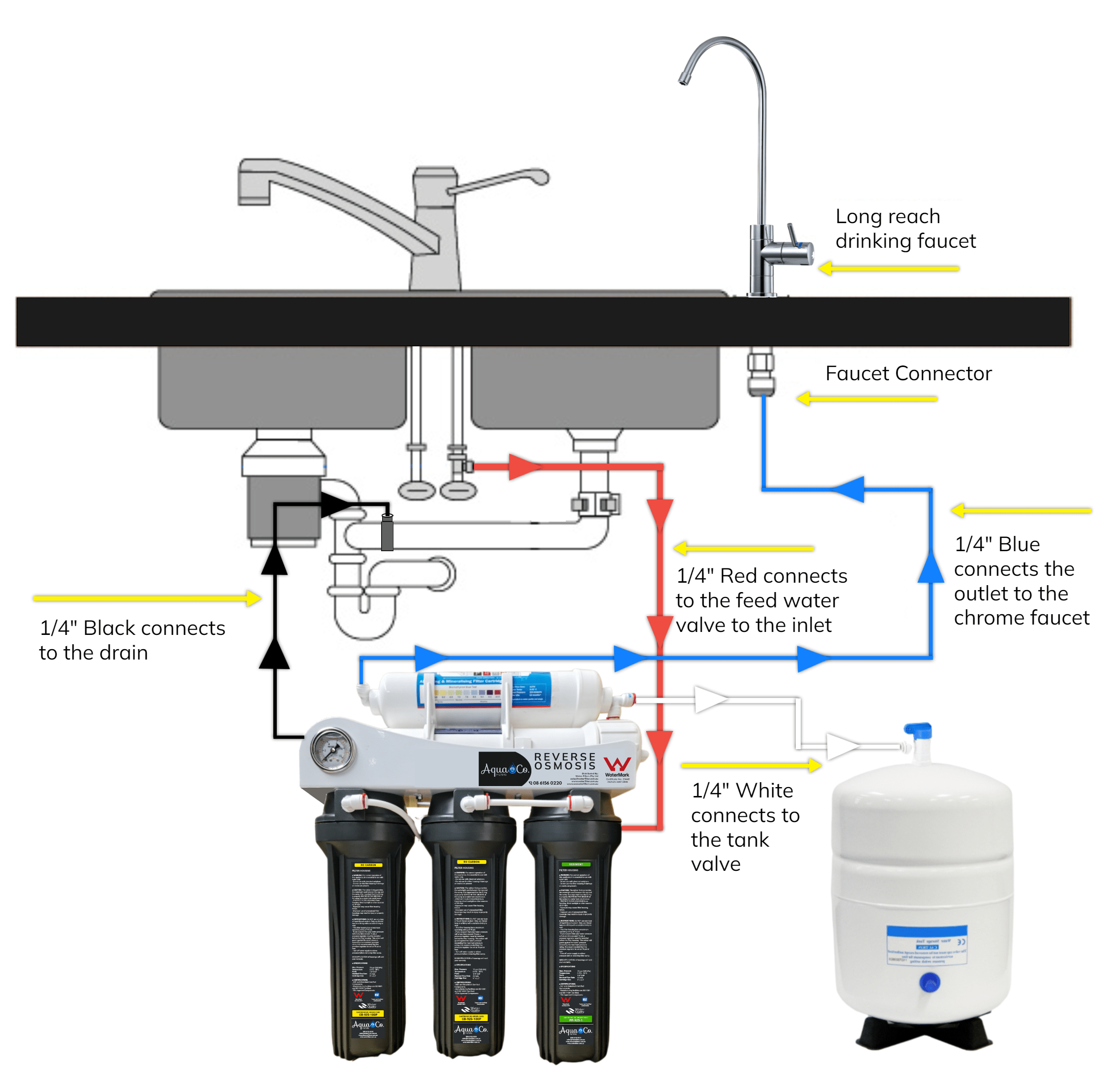

Usually the system is installed standing under the kitchen sink. This ensures a cost efficient fast installation. Where height is an issue, the system can be installed laying down as well. See installation diagram.

Dimensions

System Dimensions: 360W x 430 H x 320 D(mm)
8L Capacity Reverse Osmosis Tank Dimensions: 244 D x 366 H (mm)
- You can upgrade your tank size to 12L for only $50.
Dedicated Drinking Faucet Dimensions: 292 H x 80 W x 130 D (mm)
- Instead of having a separate faucet for filtered water, consider having a 3 Way Mixer to avoid drilling a hole through your stone/wood bench.

Specifications

Model: AquaCo Reverse Osmosis
Part Number: SYS-RO925TM5
Filtration Method: Mechanical, Adsorption, and Reverse Osmosis
Filter Size: 9″ x 2.5″
Filtration Stages: 5
Brand: AquaCo
Connection Type: 1/4″
Maximum Operating Pressure: 80 psi
Minimum Operating Pressure: 35 psi
Final Flow Rate: 3LPM out of the Tank
Membrane Flow Rate: 16 L/H
Connects To: Cold Water Line
System Dimensions: 360W x 430 H x 320 D(mm)
8L Capacity Reverse Osmosis Tank Dimensions: 244 D x 366 H (mm)
- You can upgrade your tank size to 12L for only $50.
Dedicated Drinking Faucet Dimensions: 292 H x 80 W x 130 D (mm)
- Instead of having a separate faucet for filtered water, consider having a 3 Way Mixer to avoid drilling a hole through your stone/wood bench.

If your water pressure is under 35 psi, you may be required to fit a booster pump.

Accessories Included

3 x Water Filter Housings/Casings.
1 x Spanner/Openning Tool
1 x LED Indicator Chrome Faucet
1 x 1 Micron Triple Gradient Sediment Filter
2 x 5 Micron Carbon Block Filters
1 x 0.0005 Micron Dupont Fimtec Membrane
1 x Alkalising/Mineralising Inline Filter
1x Reverse Osmosis Storage Tank (Standard being 8 Litres)
Accessories & Adaptors (Flow Restrictor, Tank Valve, Drain Clamp, Auto Shut-off valve, Pressure Limiting Valve, Mains Connector/Mains Valve, Check Valve, Tee run…)

Certifications

System components are made in manufacturing facilities certified by ISO 9001 and ISO 14001. All high pressure housings/casings are constructed out of chemical resistant reinforced polypropylene and is pressure tested beyond industry standards.

Reverse Osmosis Tank, Certified to ANSI/NSF 58
Reverse Osmosis Membrane, Certified by NSF International against NSF/ANSI Standard 58 for material requirements only for safe use in drinking water applications.
Dedicated Chrome Chrome Tap, Certified to NSF/ANSI 61 Section 9-G. This faucet is Tested and Certified by NSF International against NSF/ANSI 42, 58 for materials and structural requirements.
Sediment Filter, Tested and Certified by NSF International under NSF/ANSI Standard 42 for material requirements only.
Carbon Filter, Tested and Certified by NSF International under NSF/ANSI Standard 42 for material requirements only.

System WaterMark Certification No. 23448

FAQs

What are the chrome faucet specifications?

See Dedicated Chrome Faucet Specifications

The system features a Chrome Faucet with a LED Indicator Light that will turn from blue to red when filters need changing. Certified to NSF/ANSI 61 Section 9-G. This faucet is Tested and Certified by NSF International against NSF/ANSI 42, 58 for materials and structural requirements.

If you do not want to drill a hole through your bench to install the dedicated faucet for your drinking water, you can replace your existing kitchen tap and consider getting a 3 Way Mixer. 3 Way Mixers provide hot, cold and filtered water, all in one faucet.
